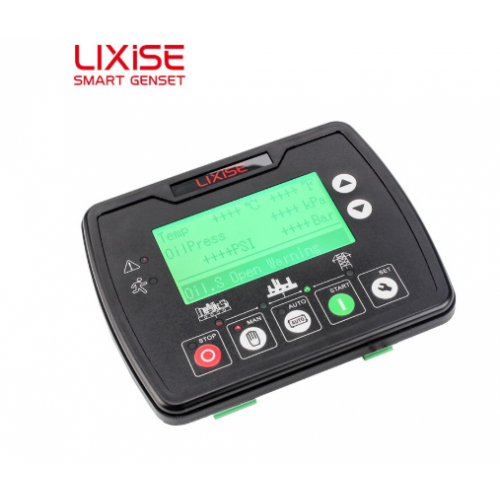

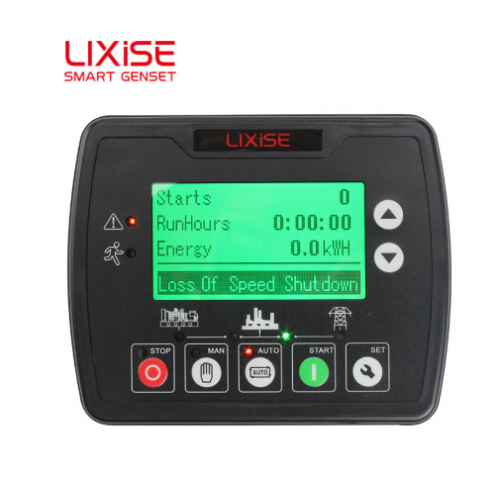

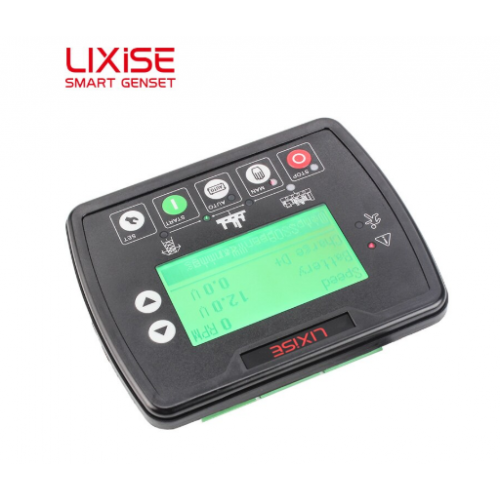

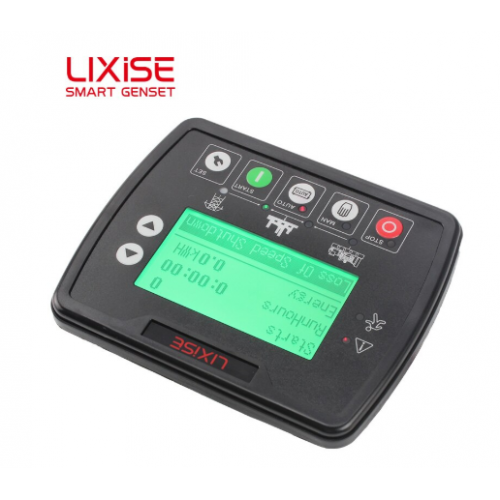

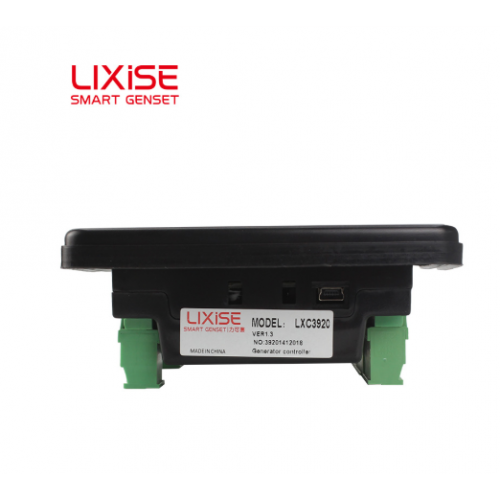

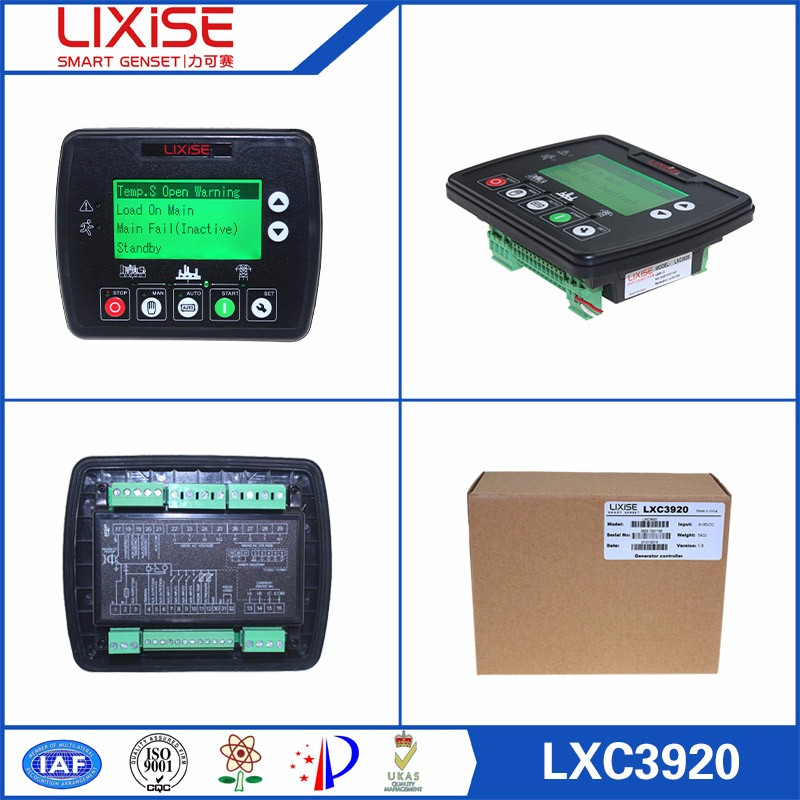

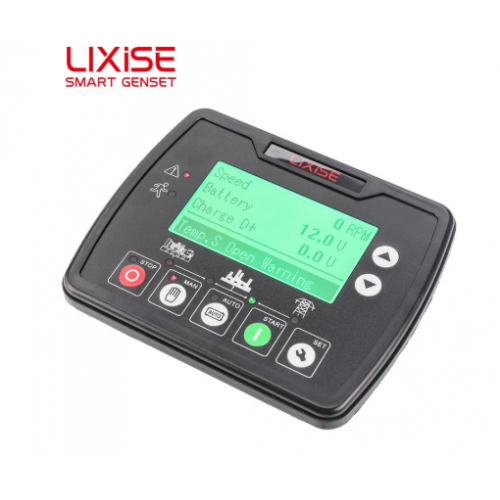

LIXiSE LXC3920 diesel genset remote monitoring system

Description

LXC3920:Based on LXC3120,add RS232 interface and can be remotely monitored by LXI680

integrated with related PC software.
s Its n main s features e are s as follows:
Display :132×64 LCD with emerald green backlight;

Language :Chinese, English, Spanish and Russian;
Operating :good feeling button pushing, long button life;
Suitable for :3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with
voltage 120/240V and frequency 50/60Hz.

Protection: Automatic start/stop of the genset, ATS(Auto Transfer Switch) control with perfect fault
indication and protection function;
Output Control :With ETS, idle control, pre-heat control, speed raise control and speed drop control,
All output ports are relay-out;

Parameter Settings :All the parameters can be adjusted using front panel of the controller or use the
computer through USB to connect directly to controller settings, all is not lost when power down
parameter system;
Sensor Detection :More kinds of curves of temperature, oil pressure, fuel level can be used directly
and users can define the sensor curves by themselves;
Multiple rank Dtisconnect Conditions : s Gens l frequency,speed,oil pressure,D+;
Widely r Power supply range: DC(8~35)V, suitable to different start battery voltage environment;

gounting Assembly :Modular design, anti-flaming ABS plastic enclosure, plug gable connection
terminals and embedded installation way; compact structure with easy mounting.

LXC3920:When mains is abnormal (over/under voltage, loss of phase), enter into “Mains Abnormal
Delay” and LCD displays count down time. When the delay is over, “Start Delay” timer is initiated.
“Start Delay” countdown will be displayed on LCD.
 When start delay is over, preheat relay energizes (if configured), “preheat delay XXs” information will
be displayed on LCD.
After the above delay, the Fuel Relay is energized, and then one second later, the Start Relay is
engaged. The engine is cranked for a pre-set time. If the engine fails to fire during this cranking
attempt then the fuel relay and start relay are disengaged for the pre-set rest period; “crank rest time”
begins and wait for the next crank attempt.
Should this start sequence continue beyond the set number of attempts, the start sequence will be
terminated, the first line of LCD display will be highlighted with black and Fail to Start fault will be
displayed.
In case of successful crank attempt, the “Safety On” timer is activated, allowing Low Oil Pressure,
High Temperature, Under speed, Charge Alternator Failure and Aux. inputs (configured) to stabilize
without triggering the fault. As soon as this delay is over, “start idle” delay is initiated (if configured).
During “start idle” delay, under speed, under frequency, under voltage alarms are inhibited. When this
delay is over, “warming up” delay is initiated (if configured).
After the “warming up” delay, if generator status is normal, its indicator will be illuminated. If generator
voltage and frequency have reached on-load requirements, then the generator close relay will be
energized; genset will take load; generator power indicator will illuminate and generator will enter into
Normal Running status. if voltage or frequency is abnorm

LXC3920:During normal running process, if mains normal, enters into “Mains Normal Delay”. When
mains indicator illuminates, “Stop Delay” begins.LXC3X10:When the “Remote Start” signal is removed, the stop delay is initiated.
Once this “stop delay” has expired, the Generator Breaker will open and the “Cooling Delay” is then
initiated. After “Transfer Delay”, the mains close relay will be energized; mains will take load;
generator power indicator will extinguish while mains power indicator will illuminate.
During “Stop Idle” Delay (if configured), idle relay is energized.
“ETS Solenoid Hold” begins, ETS relay is energized while fuel relay is de-energized.
 "Fail to Stop Delay" begins, complete stop is detected automatically.
Generator is placed into its standby mode after its complete stop. Otherwise, fail to stop alarm is
initiated and the corresponding alarm information is displayed on LCD.





Operating Voltage	DC8.0V continuous power supply to 35.0V
Power consumption	<3W (standby mode: ≤ 2W)
Alternator voltage input:	15V AC - 360 V AC (ph-N)
Phase four-wire	15V AC - 360 V AC (ph-N)
Two-phase three-wire	15V AC - 360 V AC (ph-N)
Single-phase two-wire	30V AC - 620 V AC (ph-ph)
Three-phase three-wire
Alternator frequency	50 Hz / 60Hz
Speed sensor voltage	1.0 to 24V (rms)
Speed sensor frequency	Maximum 10000Hz
Start relay output	5A DC28V DC power supply output
Programmable relay output 1	5A DC28V DC power supply output
Programmable relay output 2	5A DC28V DC power supply output
Programmable relay output 3	5A DC28V DC power supply output
Programmable relay output 4	5A AC250V passive output
Programmable relay output 5	5A AC250V passive output
Dimensions	143mm x 115mm x41mm
Hole size	110mm x 90mm
Current transformer secondary current	Rated: 5A
Working conditions	Temperature: (-25 ~ 70) ° C Humidity: (20 ~ 93)% RH
Storage conditions	Temperature: (-30 ~ +80) ° C
Protection class	IP55: When installed between the controller and the control panel when the waterproof rubber ring.
	IP42: When between the controller and the control panel when not fitted waterproof rubber ring.
Dielectric Strength	Object: Input / Output / Power
	Reference Standard: IEC688-1992
	Test Method: AC1.5Kv/1min leakage current 3mA
