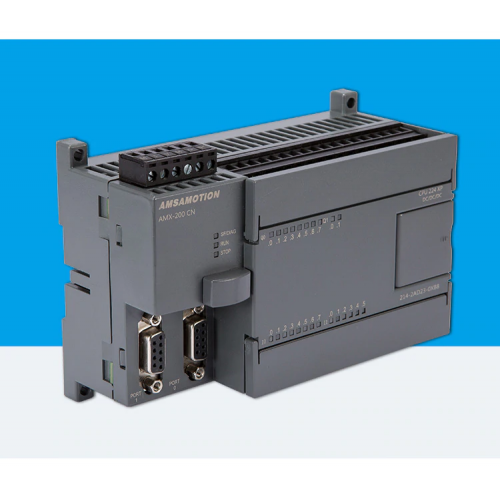

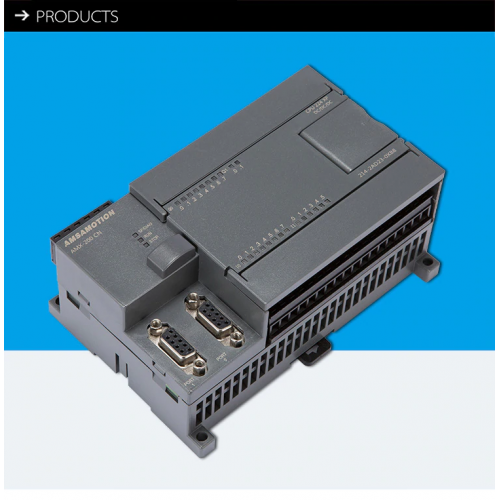

PLC S7-200/CPU224XP Programmable Logic Controller

DC24V, switch 14 input 10 output, analog 2 into 1 out, analog to digital conversion 3ms,

Transistor output: 100K pulse, 1A high current, source type (PNP),

2 PPI communication port, support 187.5K baud rate, 2 ports support Modbus, free port communication, USS communication, 6 axis 30KHz high speed counter, Capacity 20K

Support step7-micro/win programming, Data power-off maintenance

Supports PPI / MPI/ MODBUS/USS protocol.

SPECIFICATION:

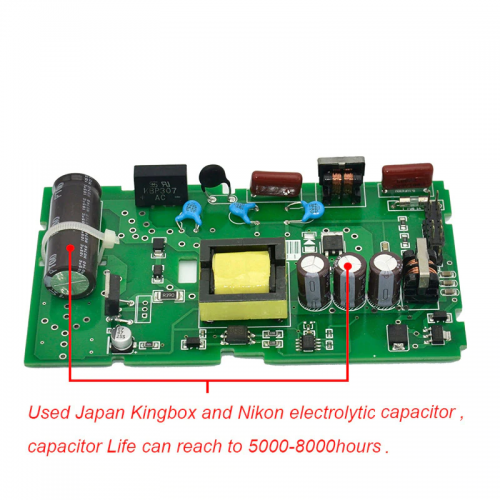

Power consumption:5.5W

Voltage:24V
Program memory:36K

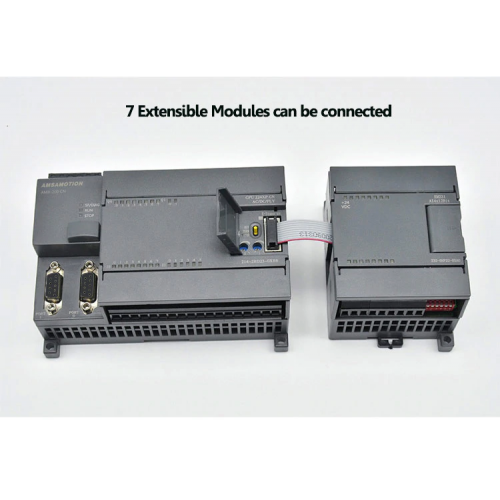

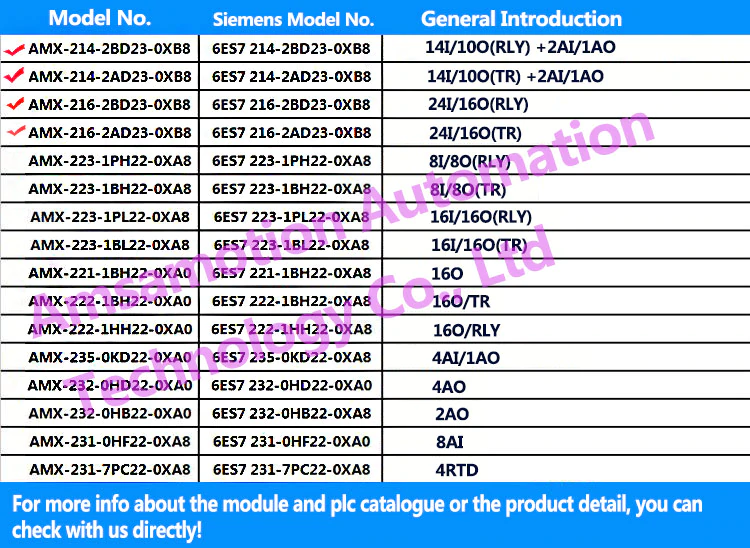

Extension modules:1-7
Digital value extension:MAX256DI/DO
Analog quantity extension:MAX32A/16AQ
Data storage time:Memory flash,permanent
Total number of counters:256
Timer total:256
Data space:10kb

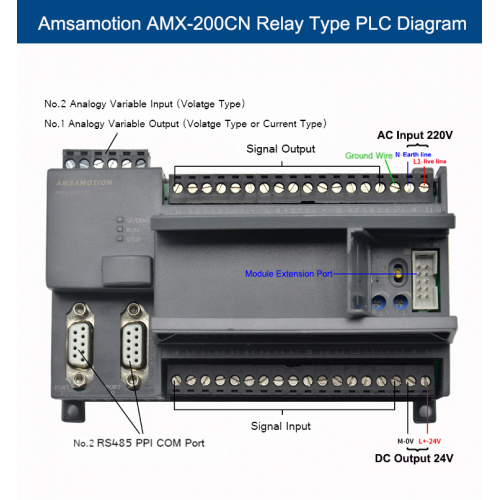

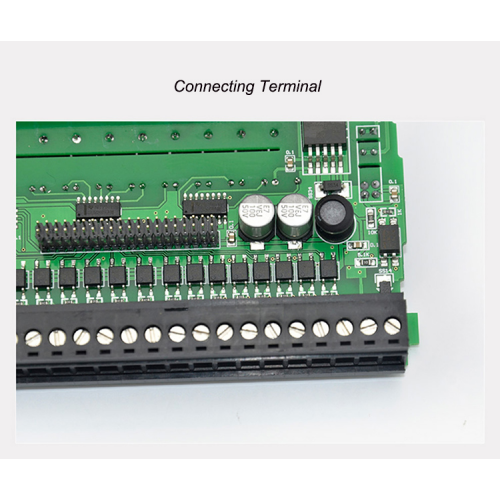

Communication port:2*PPI communication port,RS485
Baud rate:9.6,19.2,187.5kbps
Digital value input:14 channel input
Digital value output:10 channel output
Analog quantity input:2
Analog quantity output:1
Access way:NPN/PNP
Output type:DC/DT
Digital output rated current per point:0.75A
Maximum cable length:500m(shield）
Pulse capture input:14
High speed counter: 6 x 30KHz

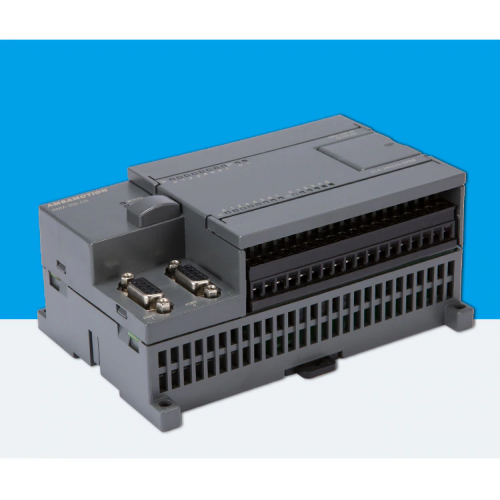

Size:as the picture
Weight:376g

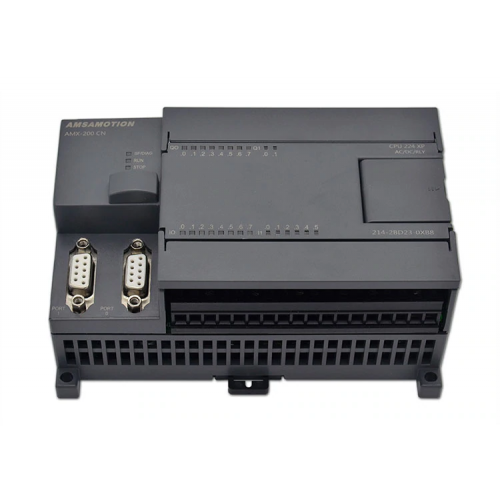

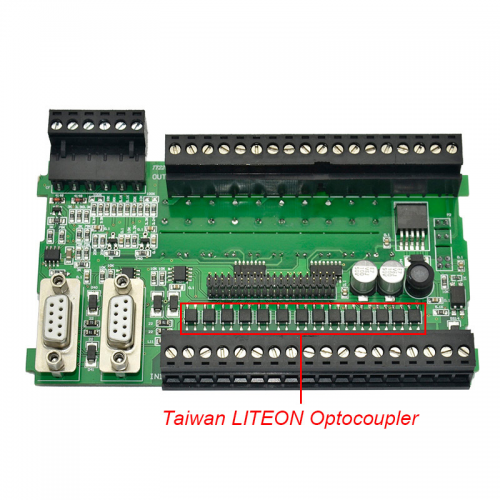

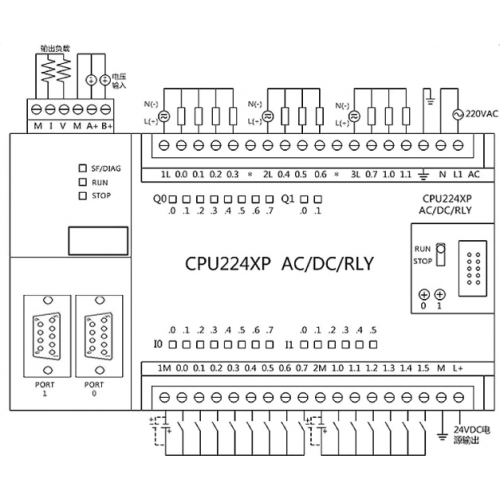

14Point Input/ 10Point Output PLC

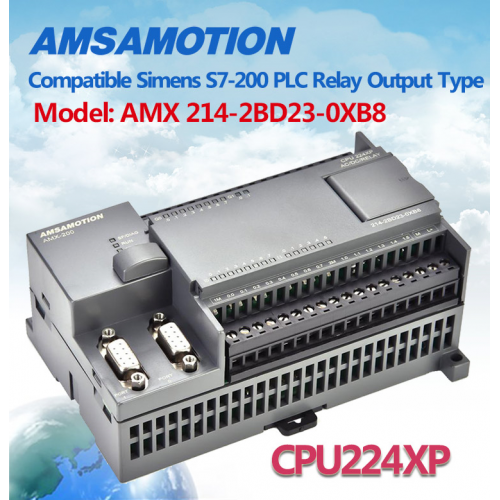

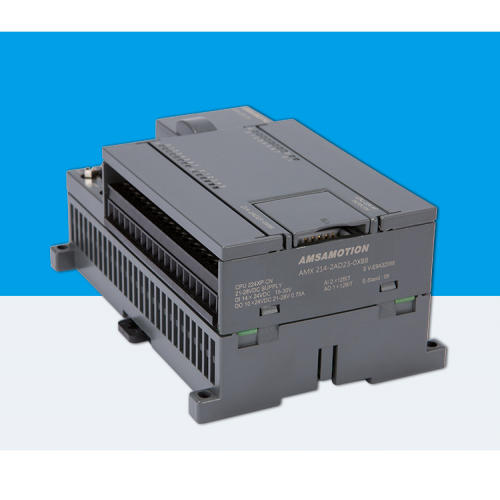

214-2AD23-0XB8 Relay Type PLC DC24V Input/ DC 24V Output

*****AMX 224XP PLC Support PWM, doesn't support PTO wizards and magazine positioning control.

What is PWM and What is PTO??

PWM belongs to analog control mode, when the equipment has the accurate requirements for rotational speed and torque we can choose PWM. PWM will simulate the input signal as constant voltage output by apply high-speed counter, it control the variation of motor rotational speed by controlling voltage variation.

PTO belongs to pulse control mode, when the equipement has the accurate requirement for the position we need choose PTO.

Amsamotion 224XP plc can't achieve the function of PTO wizards .
