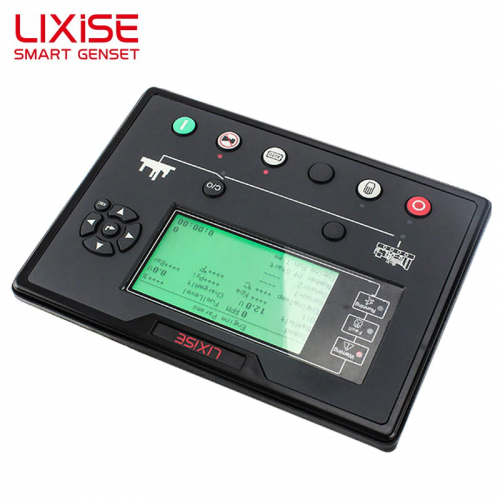

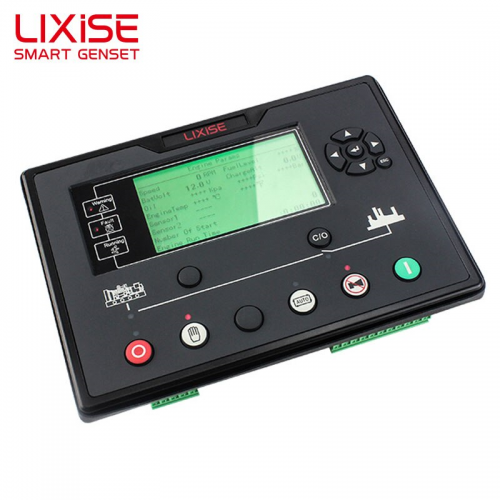

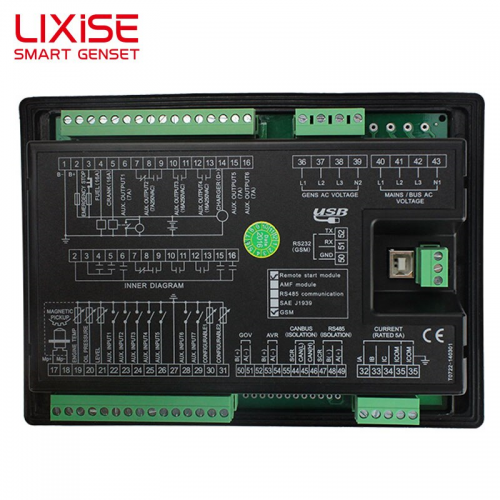

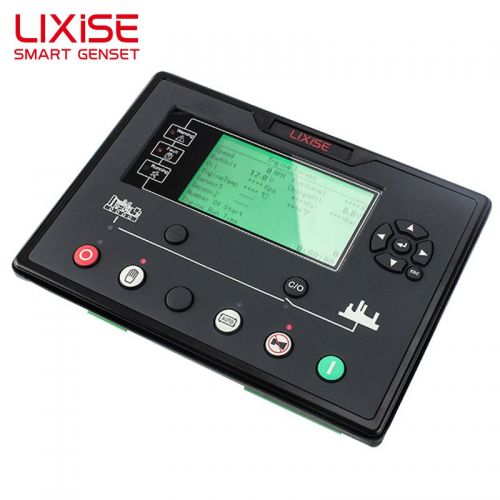

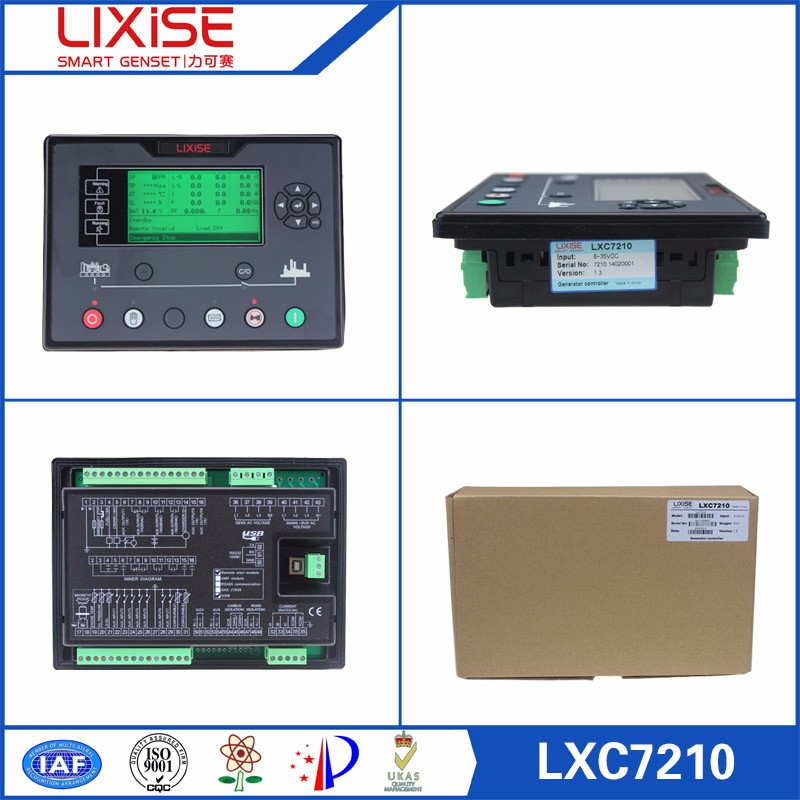

LIXiSE LXC7210 Completely replaced dse6110 smart genset controller

Description

LXC7210 diesel genset automation controller series  for a single automation and control systems, the use of 32-bit microprocessors and embedded real-time systems technology, turbine automatic start / stop, a variety of parameters precision measurement, alarm protection and "three remote "function. The controller uses LCD screen (240 * 128LCD) graphic display can be displayed on one page under almost all the important parameters, save the page. Can be set to Chinese, English, Spanish, Russian, all parameters can be adjusted from the control panel, or use a PC via USB, RS485 or GPRS remote adjustment and monitoring. Its compact, simple wiring, high reliability, and can be widely used in various types of generators automation systems, but also for fire pumps, air compressor automation control systems.

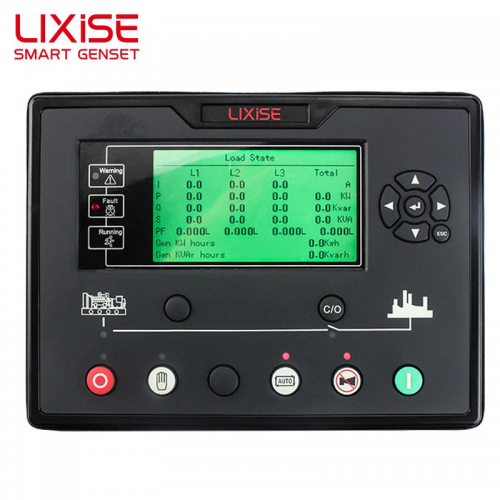

1,     Using 240x128LCD display with backlight, multi-language interface operations include: Chinese, English, Spanish and Russian. Can be displayed on one page most parameters, save frequently switch the page view, making the operation more convenient;

2,     With SMS function, when there is an alarm generator can automatically set 5 phone numbers to send alarm information can also be controlled via SMS turbine generator sets and inspection status. With advanced networking capabilities, GPRS mobile network and the Internet via the Internet, at any place where the network can be remotely monitor; (GPRS module to be installed: LXI680)

3,     Acquisition and display mains / generator phase voltage, phase current, phase sequence, frequency, active power, reactive power, power factor, power, various engine sensor data;

4,     Mains overvoltage, undervoltage, over and under frequency, phase, reverse phase sequence warning function, power generation has overvoltage, undervoltage, over and under frequency, over current, over power, reverse power, phase, reverse phase sequence warning and shutdown protection;

5,     Three fixed analog sensors (temperature, oil pressure, liquid level), two programmable analog sensor can be set to the temperature or pressure or liquid level sensor (LXC71X0 no such function);

6,     A heater, cooler, fuel pump control functions;

7,     Perfect control and protection functions: to achieve diesel and natural gas generator set automatic start / stop, close / open gate (ATS switch) and perfect protection fault display function, when there are multiple warnings, the warning bar will display them in turn, facilitate the analyze the reasons;

8,     There fault history 200, can record instant warning or failure occurs in hydraulic, water temperature, voltage, current, power, and other important parameters, easy to analyze the causes and maintenance;

9,     There are real-time clock, timer switch (monthly / weekly / boot once a day and can be set with or without load) function;

10,     Group with three maintenance functions can be set to machine maintenance cycle. Maintenance time can be set to the action (warning or alarm shutdown);



 Specification:

Working voltage:	DC8.0Vto 35.0V (continue to supply)
Consumer power:	<3W (stand model: ≤2W )
Alternator voltage input:	20V AC - 360 V AC   (ph-N) 3 Phase 4wire
3 Phase 4wire:	30V AC - 620 V AC   (ph-ph) 3 Phase 3wire
3 Phase 3wire:	20V AC - 360 V AC   (ph-N)
1 Phase 2wire:	20V AC - 360 V AC   (ph-N)
2 Phase 3wire:
Frequency:	50/60HZ.
Speed   sensor voltage Vpp:	1.0 - 80Vpp
Speed   sensor Frequency:	Max 10000HZ
Starting relay output:	16Amp   DC28V
Fuel relay output:	16Amp   DC28V
Programmable relay output 1:	7Amp  250VAC passive output
Programmable relay output 2:	7Amp  250VAC passive output
Programmable relay output 3:	16Amp  250VAC passive output
Programmable relay output 4:	16Amp  250VAC passive output
Programmable relay output 5:	7Amp 250VAC Power supply voltage   output (LXC7220)
Programmable relay output 6:	7Amp 250VAC Power supply voltage   output (LXC7220)
Current transformer secondary electric:	5A
Out Size:	210mm x 152 mm x 48 mm
Tapping Size:	186mm x 141mm
Working condition:	Temp. (-25~70) ° C humidity: (20~90)%RH
Storage condition:	Temp.    (-40~+80) ° C
Degree of protection:	IP55:when between the controller and the   control screen withwaterproof rubber ring.
	IP42: when between the controller and the   control panel is not equipped with waterproof rubber ring.
Insulation strength:	Object: the insulation strength between the   input / output / power
	References: IEC6881992
	Test method: AC1.5Kv/1min 3mA leakage current
Weight:	0.68kg
