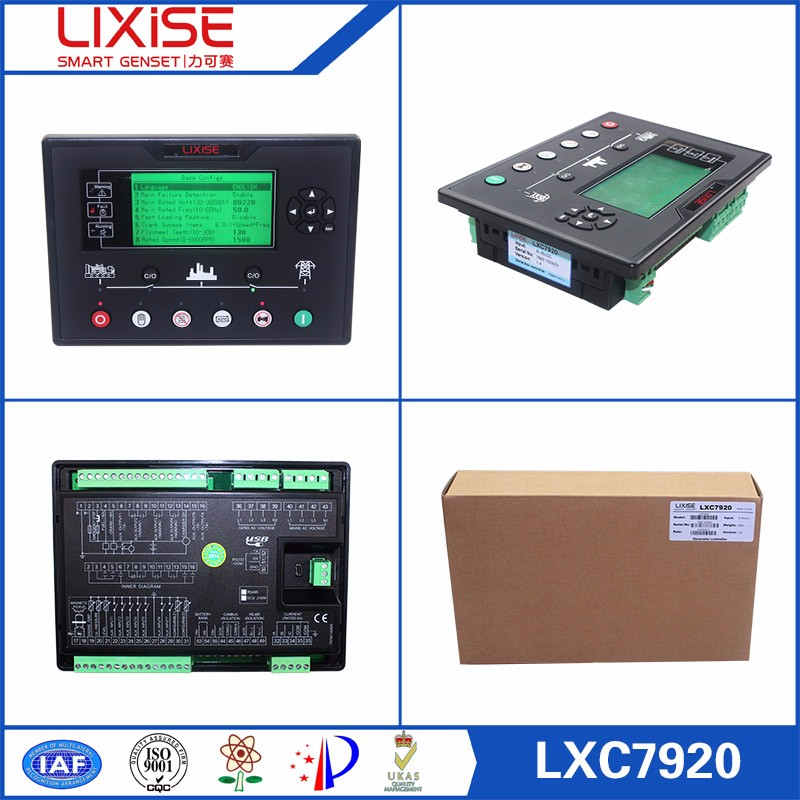

LIXiSE LXC7920 spare parts of genset Mains Control Module

Description

LXC7920 of power plant automation controller for the automation and monitoring system of a
single diesel generator sets, use 32-bit microprocessor technology, achieve generator sets automatic
boot/shutdown, the precision measurement of various parameters, alarm protection and three remote
function. The controller uses a large-screen LCD (240*128LCD)graphics display, all the important
parameters can be displayed in page, save the page. At the same time can be displayed Chinese, English
and other languages, all parameters can be adjusted from the controller panel, can also be a PC through
a USB interface tweaks and RS485 or GPRS remote adjustment and monitoring. Its structure is compact,
simple wiring, high reliability, automation control systems are widely used in all types of generator sets
and fire pumps.

Working voltage	8.0-35Vdc continuous
Alternator votage input:Three-phrase four wire	20V AC-360VA(ph-N)3 Phase 4 wire
Three-phrase three wire	30V AC-620V AC(ph-ph)3 Phase 3 wire
Single-phrase two wire	20V AC-360V AC(ph-N)
Two-phrase three wire	20V AC-360V AC(ph-N)
Overall Power Consumption	<3W(Standby mode:<=2W)
AC generator frequence	50/60HZ
Speed Sensor voltage Vpp	1.0-70V(Peak to Peak)
Speed Sensor frequence	10,000 Hz (max)
Starting relay output	The 16Amp controller power supply voltage output
Fuel relay output	The 16Amp controller power supply voltage output
Programmable relay outputs 1	7Amp 250VAC passive output
Programmable relay outputs 2	7Amp 250VAC passive output
Programmable relay outputs 3	16Amp 250VAC passive output
Programmable relay outputs 4	16Amp 250VAC passive output
Programmable relay outputs 5	The 7Amp controller power supply voltage output(LXC7220)
Programmable relay outputs 6	The 7Amp controller power supply voltage output(LXC7220)
Body Size	210mm*152mm*48nn
The size of holes	186mm*141mm
Current transformer secondary current	Specified 5A
Working condition	Temperature:(-25-+70degrees)humidity:(20-90)%
Storage Conditions	Temperature:(-40-+80degrees)
Protection class	IP55:when the installation of waterpoof rubber ring between the controller and the control panel.
	IP42:when the installation of waterpoof rubber ring between the controller and the control panel does not.
Dielectric Strength	Object:Between the input/output/power
	Reference standard:IEC688-1992
	Test Methods:AC1.5kV/1min Leakage current:3mA
Weight	0.68kg
